-65%Harken #35 2 Speed Electric Self-Tailing Radial Winch - Chrome with White Trim—
$3,087.95
$1,080.78The Story
Product Description

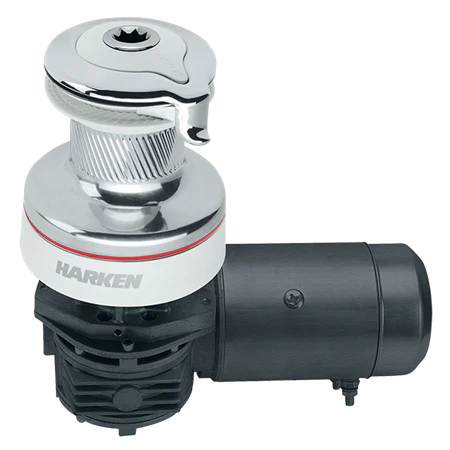

Harken #35 2 Speed Electric Self-Tailing Radial Winch - Chrome with White Trim
Specifications:
Line Entry Height (LE) - 3 1/8in (79mm)
Fastener Circle - 4 7/8in (123mm)
Fasteners (SH or HH) - 1/4 SH (6 HH, 6 SH)
Weight - 32.8 lbs (14.9kg)
Gear & Power Ratio:
Gear 1 - 2.13
Gear 2 - 5.65
Power Ratio 1 - 13.50
Power Ratio 2 - 35.90
Power in watts - 700 Watts
Wire Gauges:
Boat Size Under - 16.4ft (5m) - 2 AWG (32mm2)
Boat Size - 16.4 (5m) to 32.8 (10m) - 0 AWG (50mm2)
Boat Size - 32.8 (10m) to 49.2ft (15m) - 00AWG (70mm2)
Boat Size - 49.2 (15m) to 65.6ft (20m) - 000AWG (95mm2)
Dimensions:
E - 1 3/4in (43mm)
F - 6 1/8in (155mm)
G - 8 7/8in (227mm)
Each electric winch requires one control box, one circuit breaker, and two analog switches or one Digital System Switch. All new electric Radial and Performa electric winches are supplied with the appropriate dual-function control box. For replacement or retrofit control boxes, contact Harken.Specifications:
Gear & Power Ratio:
Wire Gauges:
Boat Size Under - 16.4ft (5m) - 2 AWG (32mm2)
Boat Size - 16.4 (5m) to 32.8 (10m) - 0 AWG (50mm2)
Boat Size - 32.8 (10m) to 49.2ft (15m) - 00AWG (70mm2)
Boat Size - 49.2 (15m) to 65.6ft (20m) - 000AWG (95mm2)
Dimensions:
E - 1 3/4in (43mm)
F - 6 1/8in (155mm)
G - 8 7/8in (227mm)
