![KVH TracNet Coastal Pro 5G/WiFi Compact Terminal w/TracNet Hub [01-0465]](/images/shopharborsupply.shop/images/product/kvh-tracnet-coastal-5g-wifi-compact-terminal-w-tracnet-hub-01-0465-1.jpg)
$1,041.99

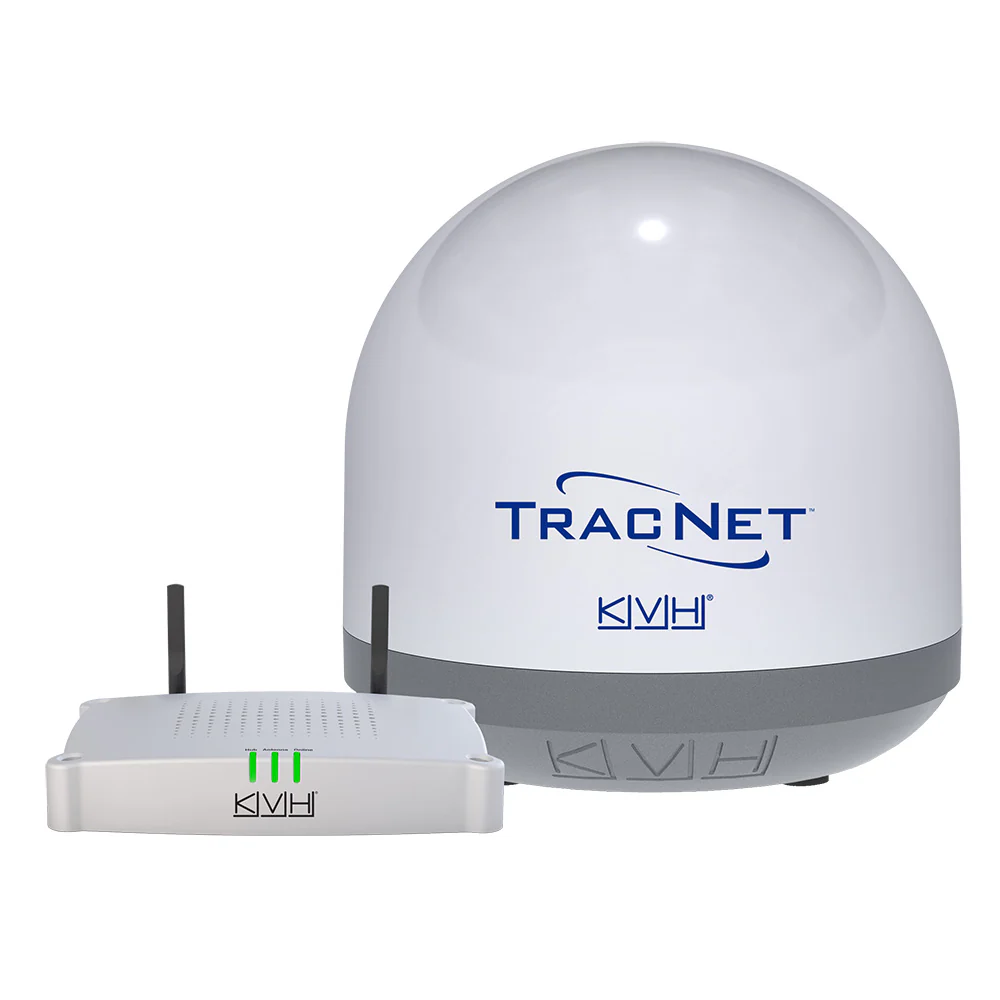

KVH TracNet Coastal Pro 5G/WiFi Compact Terminal w/TracNet Hub [01-0465]—
$1,041.99
The Story
TracNet Coastal Pro 5G/WiFi Compact Terminal with TracNet Hub
Are you looking for faster and more affordable data to support business and personal connectivity? Would you like to experience home-like content streaming on your boat? Stream, talk, watch, and connect with KVH TracNet Coastal, a compact, fast, marine-grade system that is compatible with 5G and LTE cellular services worldwide!
Features:
- 5G/LTE and WAN WiFi in a compact radome
- Integrated cellular//WiFi system with intelligent hybrid switching
- High-gain 5G cellular antennas for extended offshore coverage
- Single-cable, DC-powered maritime design (TracNet Hub)
- Data speeds as fast as 300+ Mbps plus high-gain WiFi reception in marinas and ports
- Data plans starting as low as $1/GB (subject to change)
- Connectivity in 135 countries via the KVH ONE network and exclusive KVH Fusion eSIM technology along with the convenience of month-to-month data plans and the option to Bring Your Own SIM (Requires TracNet Coastal Pro system)
- Intelligent switching among 5G, LTE, and WiFi with integrated onboard router
- Perfect hybrid complement for existing onboard communications, such as Starlink, VSAT, and OneWeb
- Marine-grade, compact antenna
- Single-cable antenna installation with ultra-efficient DC power design
- Hybrid hub functionality to intelligently and automatically switch between 5G, WiFi, and as many as two additional third-party antenna (Starlink, OpenNet, etc.)
- Compatible with the CommBox Edge Communications Gateway for advanced network and bandwidth management, channel balancing, advanced bonding, and more
- Belowdeck WiFi 5 Access Point (AP), supporting dual-simultaneous WAN and LAN WiFi
- 4-port ethernet router
- Remote SIM technology, supporting up to two user-supplied SIM cards with convenient below-deck access
Technical Specifications:
- Dome Dimensions - 13.5" (Dia.) x 13.1" (H)
- Dome Weight - 8 lbs
- Dome Operating Temperature - -25°C to +55°C (-13°F to +131°F)
- Dome Survival Temperature - -30°C to +70°C (-22°F to +158°F)
- Below Deck Unit (BDU) Ethernet Ports - 4, Configurable as Starlink WAN/ Backup WAN/User WAN
- Power Input - 10-30 Volts DC (direct wire), with available AC Power Supply option
- Power Consumption (Nominal/Max) - 16W/22W
- BDU Operating Temperature - -15°C to +55°C (+5°F to +131°F)
- BDU Survival Temperature - -25°C to +70°C (-13°F to +158°F)
- Intelligent Connection Switching Number of WANs Supported - 4 Cell/WAN Wi-Fi/Starlink/Backup WAN
Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
