The Story

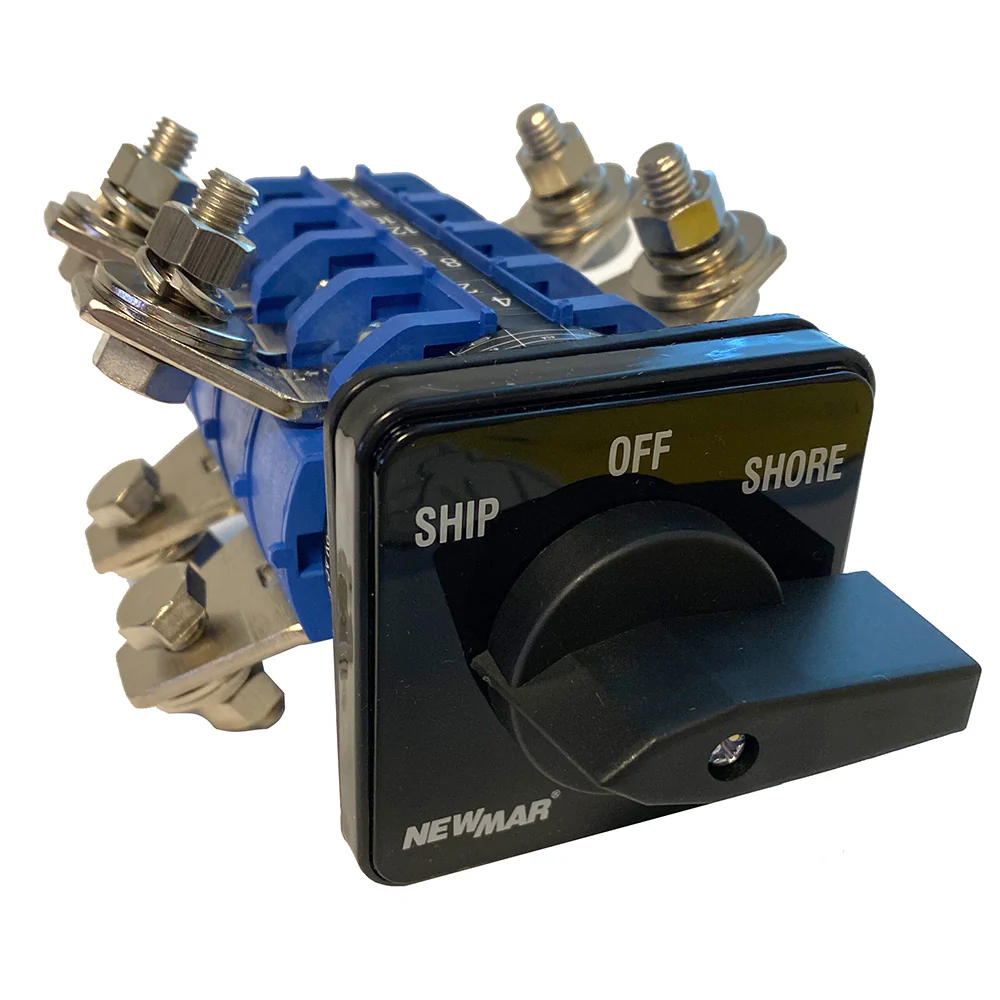

SS Switch - 15 AC Selector Switch
This AC source selector switch is an essential item for any vessel with an onboard AC generator and/or inverter. By isolating power source inputs, the switch eliminates the safety hazard and/or damage that can occur if two AC sources are applied to the same circuit simultaneously.
The switch is fitted with a compact escutcheon plate with engraved switch position nomenclature.
The switches carry cUL approval, are CE-marked, and feature heavy-duty contacts and a positive step cam mechanism for low-resistance contact closure.
Features:
- Maybe rear-mounted in a panel with a thickness of up to 1/4”
- May be configured as a 63 amp, 4 pole switch
Specifications:
- Amperage @ 115/230V: 126
- Number of Poles: 2
- Switch Positions: 2 + “OFF”
- Standard Plate Markings: SHIP-OFF-SHORE
- Depth Dimensions: 4 in.
Description
SS Switch - 15 AC Selector Switch
This AC source selector switch is an essential item for any vessel with an onboard AC generator and/or inverter. By isolating power source inputs, the switch eliminates the safety hazard and/or damage that can occur if two AC sources are applied to the same circuit simultaneously.
The switch is fitted with a compact escutcheon plate with engraved switch position nomenclature.
The switches carry cUL approval, are CE-marked, and feature heavy-duty contacts and a positive step cam mechanism for low-resistance contact closure.
Features:
- Maybe rear-mounted in a panel with a thickness of up to 1/4”
- May be configured as a 63 amp, 4 pole switch
Specifications:
- Amperage @ 115/230V: 126
- Number of Poles: 2
- Switch Positions: 2 + “OFF”
- Standard Plate Markings: SHIP-OFF-SHORE
- Depth Dimensions: 4 in.
