Spinlock XX Single Side Mount Power Clutch 5/16" to 1/2"—
$637.50
The Story
Product Description

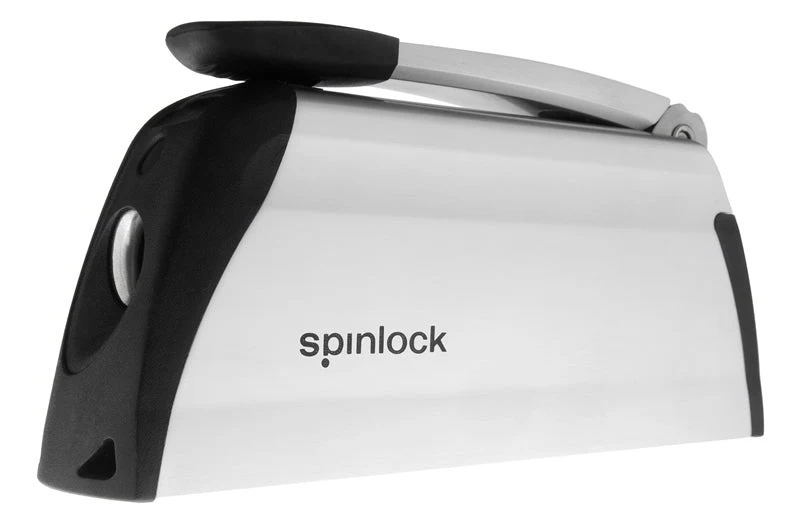

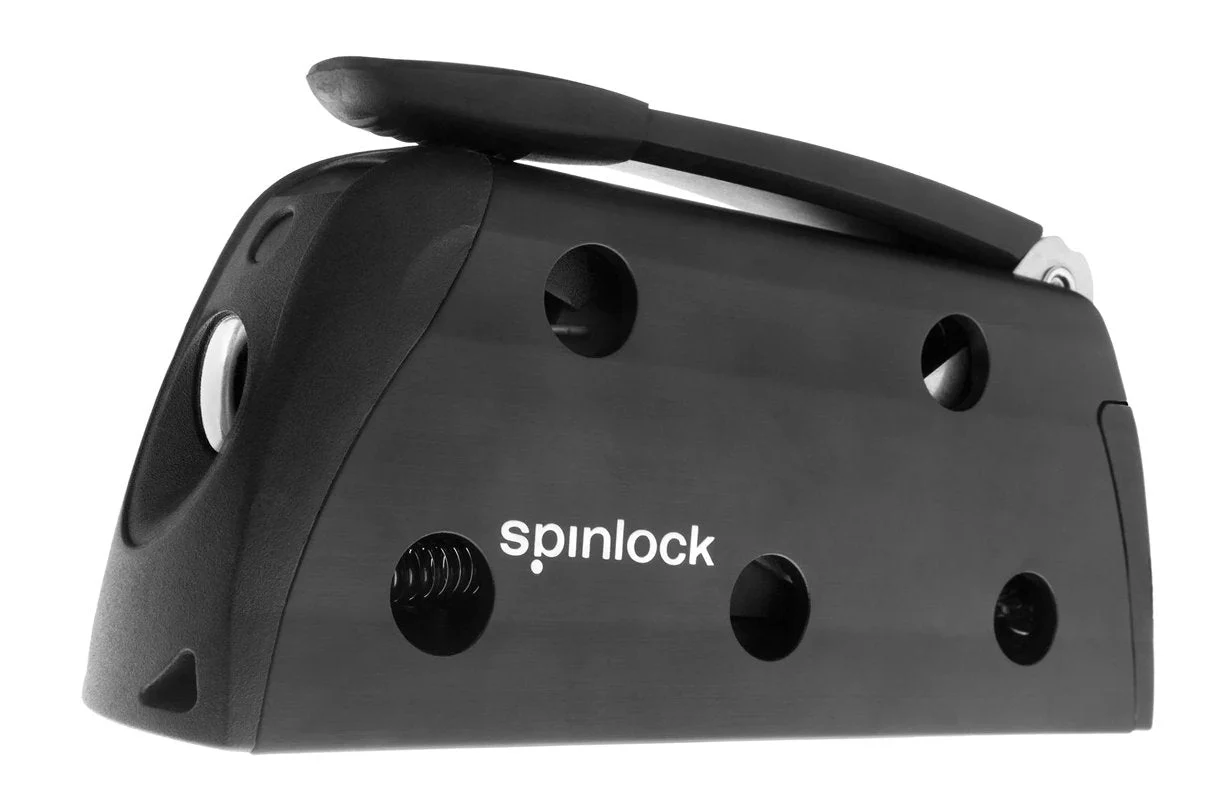

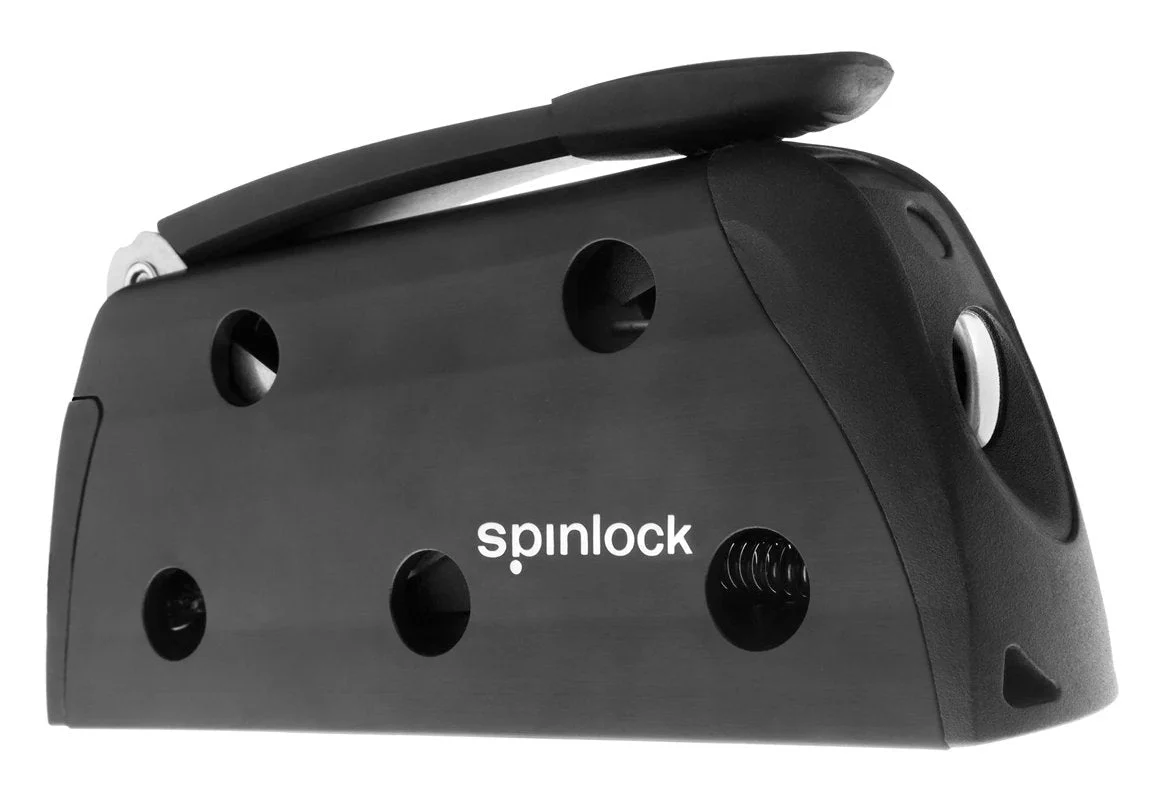

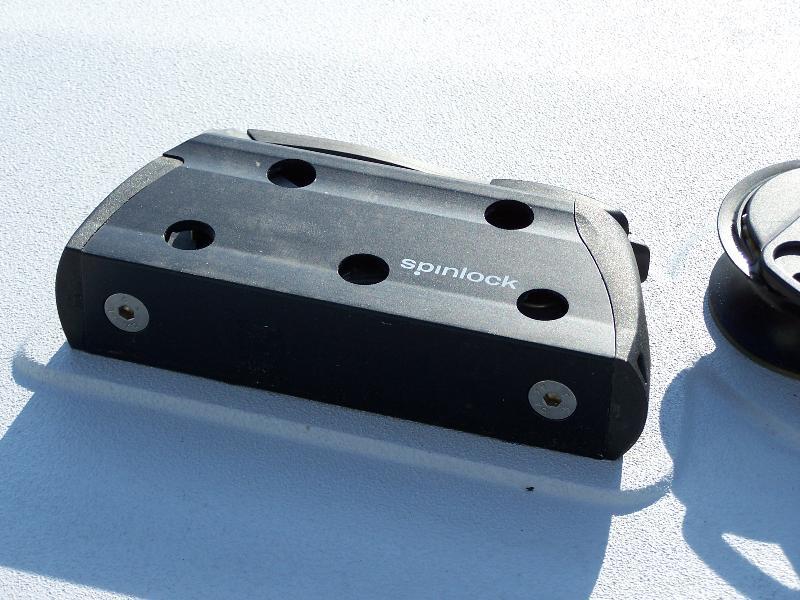

Spinlock XX Single Side Mount Power Clutch 5/16" to 1/2"
Side mounting is the neatest solution for spars, side decks and coamings. Handed port or starboard; use bolted version for conventional installation, or bonded version for building directly into deck or rig to save installation weight
Specifications:
Rope Range - 8mm - 12mm (5/16" - 1/2")
Load - 1200kg - 1800kg (2640lb - 3968lb)
Max SWL - 1800kg (3968lb)
Weight - 1.098kg (2.42lb)
Specifications:
Rope Range - 8mm - 12mm (5/16" - 1/2")
Load - 1200kg - 1800kg (2640lb - 3968lb)
Max SWL - 1800kg (3968lb)
Weight - 1.098kg (2.42lb)
Fasteners - 5 x M6 (1/4") CSK Head (Supplied)
Secure clutching solution for performance yachts from 35-50'
Features and Benefits:
Secure clutching solution for performance yachts from 35-50'
Features and Benefits:
Latest jaw technology offers consistent holding of blended covered ropes
Optimized for high performance 8mm - 12mm (5/16" - 1/2") line diameters
Available white coated, black anodized or silver polished alloy to match deck or rig
Side mount versions available
Lock Open version available
Access ports for fresh water flushing
Smooth controlled release action

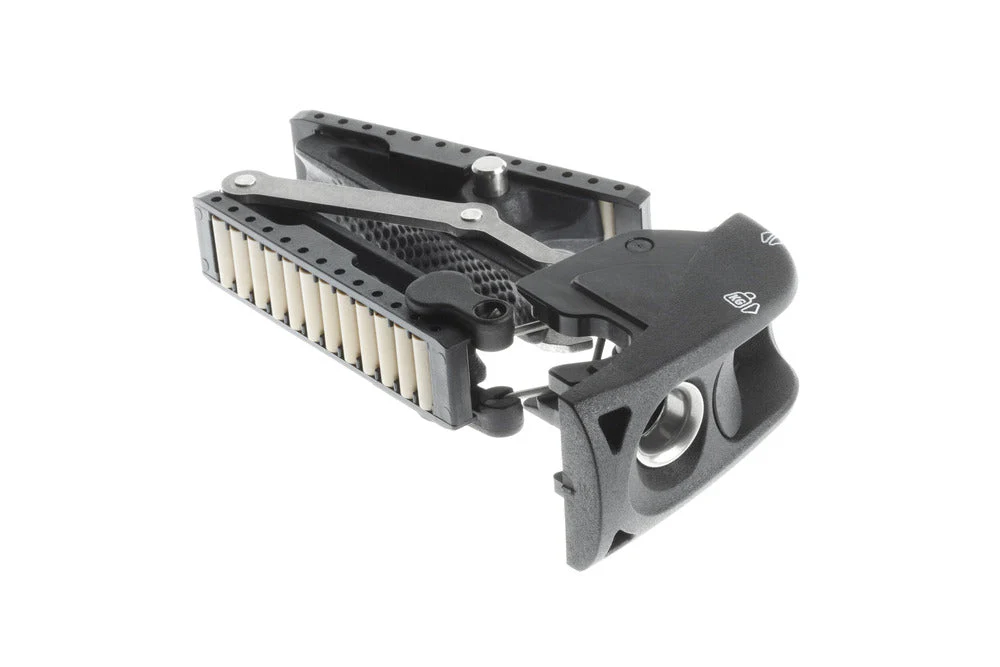

One-piece jaw set is easy to remove and clean
Line height optimized for correct lead to winch
Can be set up for remote operation with no handle
Optimized for high performance 8mm - 12mm (5/16" - 1/2") line diameters
Available white coated, black anodized or silver polished alloy to match deck or rig
Side mount versions available
Lock Open version available
Access ports for fresh water flushing
Smooth controlled release action
One-piece jaw set is easy to remove and clean
Line height optimized for correct lead to winch
Can be set up for remote operation with no handle
