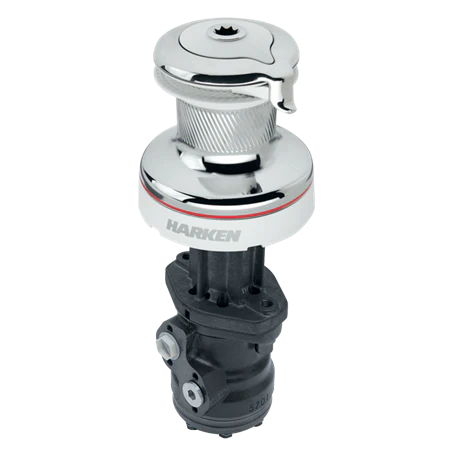

Harken 70 2 Speed Hydraulic Self-Tailing Radial Winch - Chrome with White Trim

Harken 70 2 Speed Hydraulic Self-Tailing Radial Winch - Chrome with White Trim

Powered Radial winches allow crew to trim any size sail with the push of a button. Composite roller bearings reduce friction under load and don't require lubrication. Load-carrying gears and pins are 17-4PH stainless steel for strength and durability.

Specifications:

Fasteners:  5/16" HH, 5/16" SH (M8 HH, M8 SH)

Number of Fasteners: 6
Gear & Power Ratio:

Gear 1 - 5.70

Gear 2 - 18.50

Power Ratio 1 - 22.20

Power Ratio 2 - 72.00

Dimensions:

Hydraulic (L):  9 1/4" (234mm)
Hydraulic (N):  5 1/8" (130mm)

Material: Chrome

Configuration: Self-tailing

Speed: 2

Drum Diameter:  5 1/8"  (130mm)

Base Diameter: 9 7/16"  (240mm)

Height:  10 1/16"  (256mm)

Weight of Winch and Motor: 49.9 lbs (22.6kg)

Motor Weight:  16.6 lbs (7.5kg)

Line Entry Height:  4 1/2" (115mm)

Minimum Line Diameter:  3/8"  (10mm)

Maximum Line Diameter:  11/16" (18mm)

Fastener Circle: 8 1/8" (205mm)
