$5.58
Original: $15.95
-65%Harken 1/4" (6mm) Bow Shackle—
$15.95
$5.58The Story
Product Description

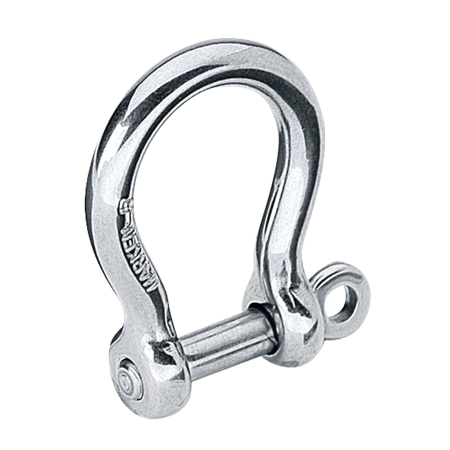

Harken 1/4" (6mm) Bow Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multi-directional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.
Specifications:
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multi-directional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.
Specifications:
| Weight (g) | 29.5 g |
| Weight (oz) | 1.04 oz |
| Maximum working load (kg) | 750 kg |
| Maximum working load (lb) | 1650 lb |
| Breaking load (lb) | 3300 lb |
| Breaking load (kg) | 1500 kg |
| A (mm) | 27 mm |
| A (in) | 1 1/16 in |
| B (mm) | 14 mm |
| B (in) | 9/16 in |
| Shackle pin Ø (mm) | 6 mm |
| Shackle pin Ø (in) | 1/4 in |
| C (mm) | 19 mm |
| C (in) | 3/4 in |
Description
Product Description
Harken 1/4" (6mm) Bow Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multi-directional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.
Specifications:
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multi-directional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.
Specifications:
| Weight (g) | 29.5 g |
| Weight (oz) | 1.04 oz |
| Maximum working load (kg) | 750 kg |
| Maximum working load (lb) | 1650 lb |
| Breaking load (lb) | 3300 lb |
| Breaking load (kg) | 1500 kg |
| A (mm) | 27 mm |
| A (in) | 1 1/16 in |
| B (mm) | 14 mm |
| B (in) | 9/16 in |
| Shackle pin Ø (mm) | 6 mm |
| Shackle pin Ø (in) | 1/4 in |
| C (mm) | 19 mm |
| C (in) | 3/4 in |
